ES-62iMKiS

Slim 2-Way Inverted Magnet Component System

ES-62iMKiS

The CDT Audio ES-62iMKiS 2-way component system combines ES-1200iS 1” high-resolution 50kHz silk dome tweeter, EX-560CDiX 2-way crossover and award-winning ES-6iMK slim design 6.7” inverted magnet component drivers with CDT’s exclusive Contoured Dispersion™ technology to create a realistic front-stage sound experience inside the challenging acoustics of a vehicle. Designed to deliver exceptional imaging, clarity, and detail with fewer drivers, the system offers both audiophile-grade performance and easy installation.

ES-62iMK

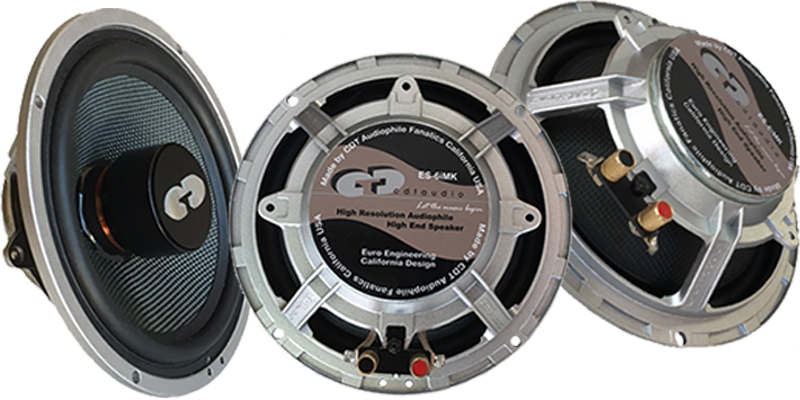

ES-62iMK Inverted Magnet Mid-Woofer

It features an advanced Kevlar cone and European-inspired inverted magnet design for outstanding sound quality in tight installation spaces.

Key features include:
  • Ultra-shallow mounting depth of only 1.89 inches
  • High-quality 38 mm voice coil
  • Rigid Kevlar cone for smooth, accurate response
  • Dual front-mounted neodymium magnets
  • Powder-coated cast aluminum frame with heavy steel back plate
This compact mid-woofer delivers exceptional performance without sacrificing installation flexibility.
ES-1200iS

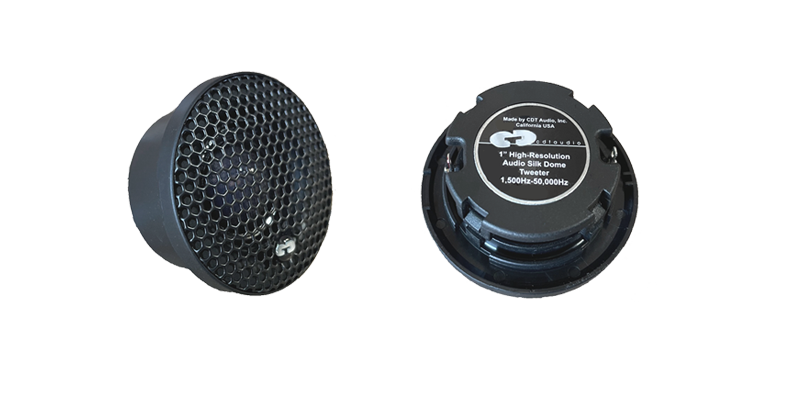

ES-1200iS Transparent Silk Dome Tweeter

The ES-1200iS is CDT Audio’s premium wide-dispersion tweeter, delivering a remarkable frequency range from 1,500 Hz to 50,000 Hz. Its advanced transparent silk dome design provides:

  • Extremely wide dispersion
  • Exceptional off-axis performance
  • Smooth, natural high-frequency reproduction
  • Greater power radiation than conventional dome tweeters
  • Improved soundstage, openness, and realism
The ES-1200iS maintains outstanding response even at wide listening angles, helping create a larger and more accurate sound field throughout the vehicle. Its combination of efficiency, clarity, and off-axis performance rivals many of the industry's most expensive tweeters.
EX-560CDiX

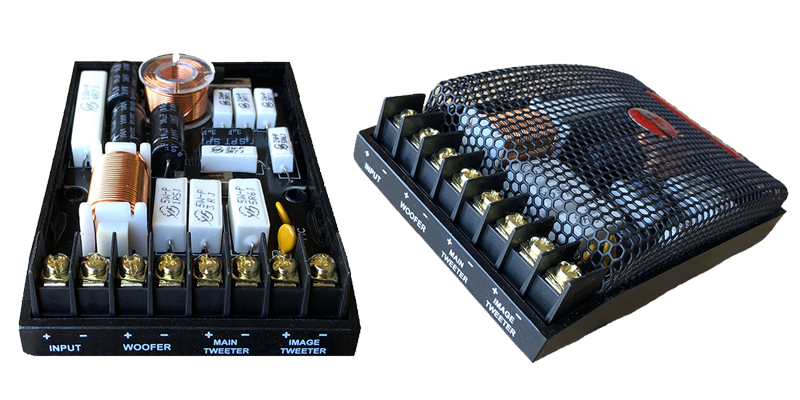

EX-560CDiX Crossover Network

2-Way Crossover with Optional Image Tweeter ChannelThe EX-560CDiX crossover includes CDT’s unique third-channel image tweeter option, designed to raise the soundstage above the dashboard and improve imaging and detail.

Features include

  • Dedicated image tweeter channel
  • Independent level adjustments for main and image tweeters
  • Rapid low-frequency roll-off for superior tweeter protection
  • Smooth, natural frequency blending
  • Ideal for installations where woofers and tweeters are mounted far apart

The result is a more realistic front-stage presentation with excellent tonal balance, detail, and listening comfort.

Price (incl. warranty)
Quantity:


Promo Price: $449.99

Reg. $650

In Summary:

ES-62iMKiS from CDT Audio

delivers audiophile-grade performance, exceptional imaging, and installation flexibility in a compact, competition-quality component speaker system.
System Specifications:

  • 1 Pair ES-6iMK 6.7" (170 mm) Kevlar cone woofers
  • 1 Pair ES-1200iS 1" high-resolution silk dome tweeters
  • 1 Pair EX-560CDiX 2-way crossovers with image tweeter channel
  • Four-level image tweeter attenuation
  • Four-level main tweeter attenuation
  • Built-in tweeter protection
  • Sensitivity: 89.6 dB
  • Power handling: 150W RMS / 200W Peak (HP 90 Hz)
  • Frequency response: 50 Hz – 50 kHz
  • Nominal impedance: 3 Ohms
  • Mounting depth: 1.89"
  • Mounting hole: 5.72"
